Series 48

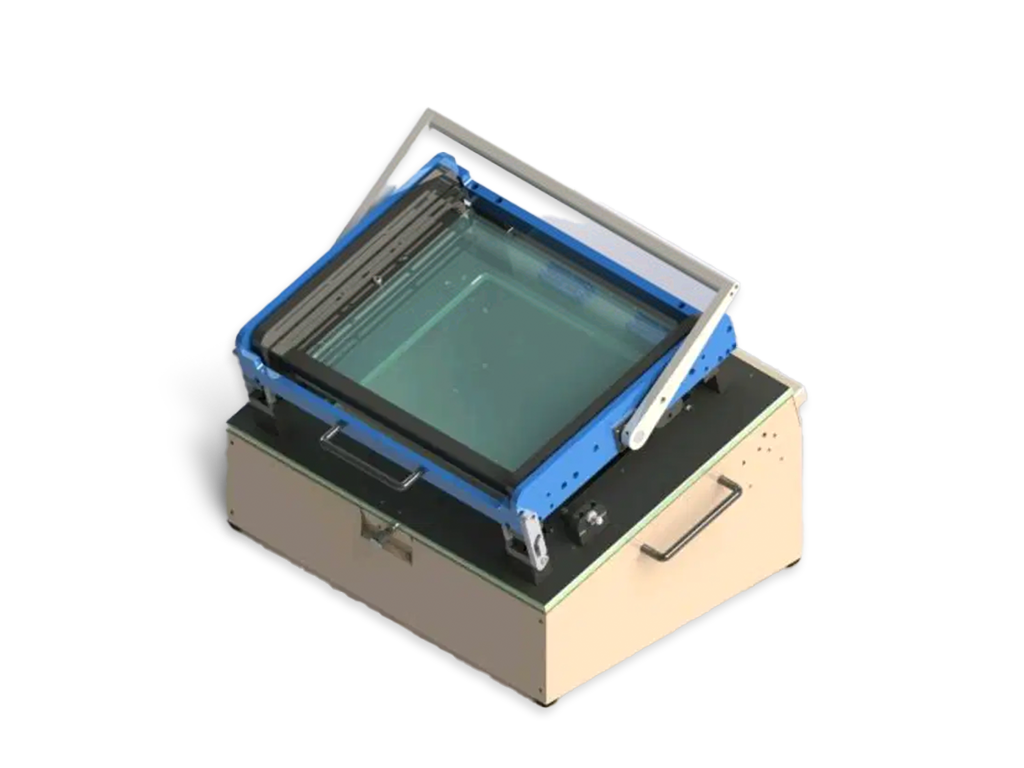

The Series 48 Universal Test Fixture Systems are an effective way to test high mix, low to medium volume products. The Universal Base is designed around the CAMGATE Z axis Test Fixture. The base interfaces with removable, quick change Series 49 Universal Test Insert Kits. Three versions are offered, a blank base whereas the end user can configure the Base and insert kit to their own connector configuration, The 160 point model which uses four (40) pin IDC ribbon cable connectors to interface between the base and the insert kit, and the -I model that incorporates the same 4 block GR2270 style block interface as used on our Series 34 test fixtures. This allows for increased test point count and the use of Industry Standard 2270 style signal, power, and coax blocks. Rear panels can be custom configured to customer specifications, Virginia Panel ITA frames, or GR2270 Interfaces used on Semco’s Standard Product line

Technical Specifications

• Aluminum Base Plate
• Interchangeable Series 49 insert Kits
• 1″ stroke
• Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
• Optional Sheet Metal pan depths
• Guide pins for accuracy on Insert Kits
• Multiple Back Panel Configurations
