Series 43 GR2270 CamTrac ‘Z’ Axis Mechanical Test Kits

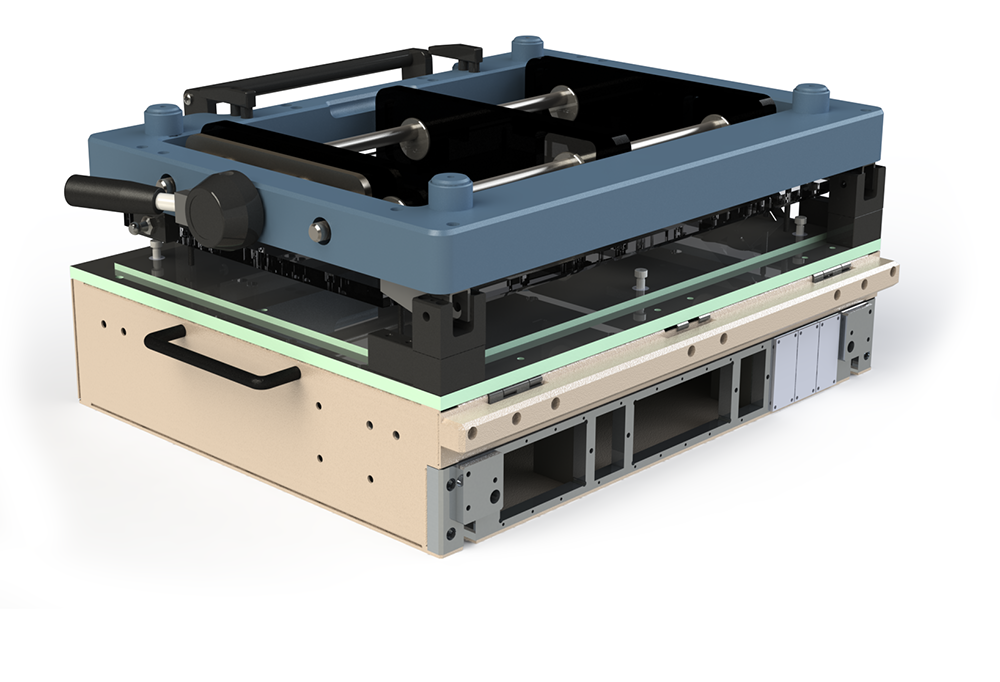

The GR Series 43 CAM/TRAC®1 kits, utilizing the patented CAM mechanism, offer precise Z axis linear motion when testing higher point count and finer pitch test centers. By using the Z axis motion, side load of the test probes is minimized thus increasing probe life and performance. The Series 43 provides interface compatibility by using a 12 position, GR2270 style I/O block interface. This interface accepts the industry standard I/O, power, and coax blocks.
Technical Specifications
- Hinged 3/8″ thick G10 Probe plate
- Optional 3/8″ thick G10 or 1/2″ thick clear Polycarbonate Push Plate
- Optional 1/2″ or 3/4″ Stroke. (Draw bar version only available in 1/2″ stroke.)
- Locking bars to prevent opening the top cam assembly during test.
- 12 Position Interface that accepts Industry Standard GR2270 style (VG) blocks.
- Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
- Tooling Holes provided for accurate drilling of plates
- Optional Sheet Metal pan depths.
- Optional ESD plates. (-E)
- Optional Stripper plate (-T)
How To Determine Kit Dimensions
First Dimension: Left To Right
Second Dimension: Front To Back
Example: A4306 GR-CT102S 20″ x 16“
20 ” Left to Right
16″ Front to Back
How To Determine UUT And Pan Measurements
| Kit Size |
Max UUT Size |
Max UUT Size Per Well |
| GRCT102S: 16 x 12 (A4304) | 13.00 x 8.00 | 13.00 x 8.00 |
| GRCT103: 16 x 20 (A4305) | 13.00 x 14.00 | 13.00 x 14.00 |
| GRCT103S: 20 x 16 (A4306) | 17.00 x 12.50 | 17.00 x 11.75 |
| GRCT104S: 24 x 20 (A4308) | 21.00 x 14.00 | 20.00 x 13.75 |
| All dimensions in inches |
