Series 47

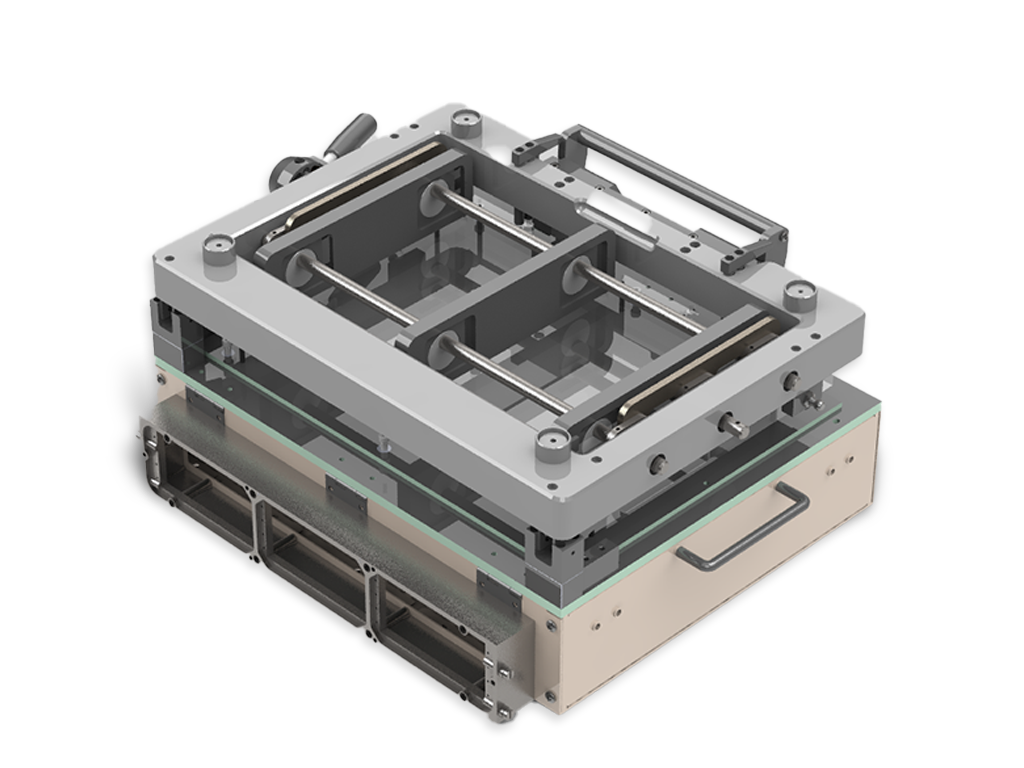

The VP Series 47 CAM/TRAC mechanical kits, utilizing the patented CAM mechanism, offer precise Z axis linear motion when testing higher point count and finer pitch test centers. By using the Z axis motion, side load of the test probes is minimized thus increasing probe life and performance. The Series 47 provides interface compatibility using the Virginia Panel ITA G12 interface. The ITA frame is offered as an option for those wanting to provide their own ITA Interface.

Technical Specifications

• Hinged 3/8″ thick G10 Probe plate
• Optional 3/8″ thick G10 or 1/2″ thick clear Polycarbonate Push Plate
• Optional 1/2″ or 3/4″ Stroke. (Draw bar version only available in 1/2″ stroke.)
• Locking bars to prevent opening the top cam assembly during test
• Accepts Virginia Panel ITA G12 Interface. (not Included) (-I Option)
• Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
• Tooling Holes provided for accurate drilling of plates
• Optional Sheet Metal pan depths.
• Optional ESD plates. (-E)
• Optional Stripper plate (-T)
