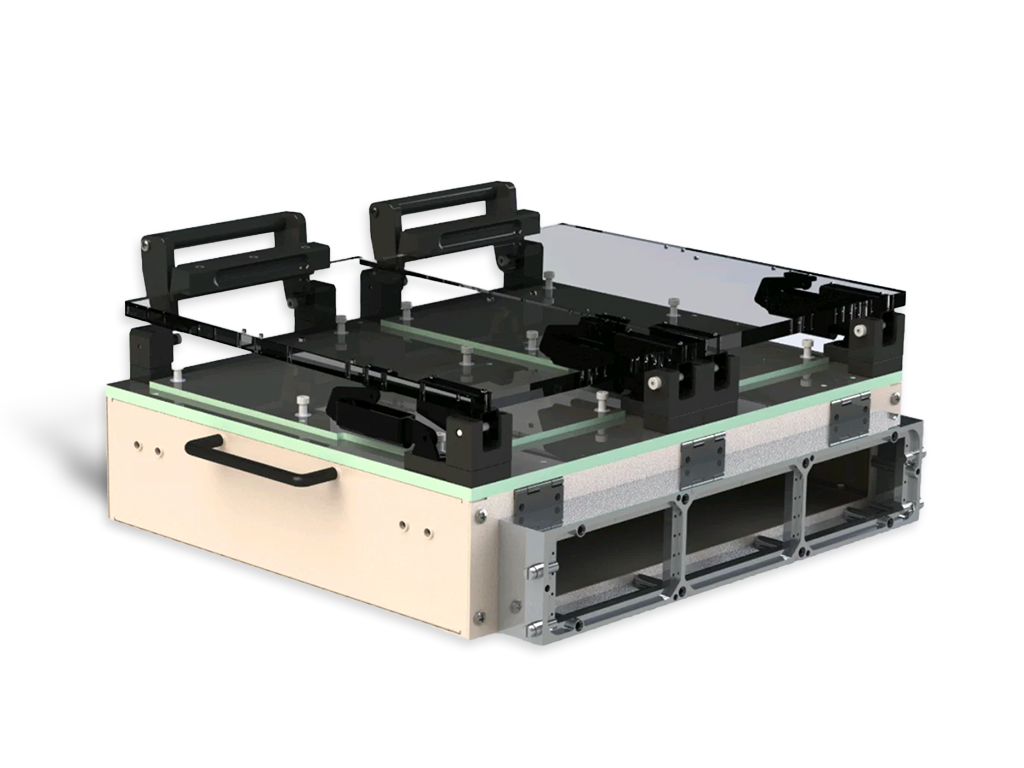

Semco Series 71 VP ITA G12 Dual Well Mechanical Test Kits
The VP Series 71 dual well mechanical kits provide a solution to printed circuit board testing using the Virginia Panel ITA G12 Interface and the advantage of testing two devices. This can be similar devices, or devices that are used together in a functional test. The VP Series 71 Kits have the same available features and options as the Series 70 Kit and are available with or without the ITA G12 Interface.
Technical Specifications
- Hinged 3/8″ thick G10 Probe plate
- 1/2″ thick clear Polycarbonate Push Plate
- Accepts Virginia Panel ITA G12 Interface (not included) (-I option)
- Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
- Tooling Holes provided for accurate drilling of plates
- Optional Sheet Metal pan depths
- Optional ESD plates. (-E)
- Optional Stripper plate (-T)
How To Determine Kit Dimensions
First Dimension: Left To Right
Second Dimension: Front To Back
Example: A7106 VP-103S-DW 20″ x 16″
20 ” Left to Right
16″ Front to Back
How To Determine UUT And Pan Measurements
| Kit Size | Max UUT Size Per Well |
Max UUT Size Per Well, with Stripper Plate |
| VP102S-DW 16 x 12 (A7104) | 5.00 x 7.50 | 5.00 x 7.00 |
| VP103S-DW 20 x 16 (A7106) | 7.00 x 10.00 | 6.50 x 10.00 |
| VP104S-DW 24 x 20 (A7108) | 9.00 x 14.00 | 8.50 x 14.00 |
| All dimensions in inches | ||
