Series 63 GR2270 Vacuum Test Kits

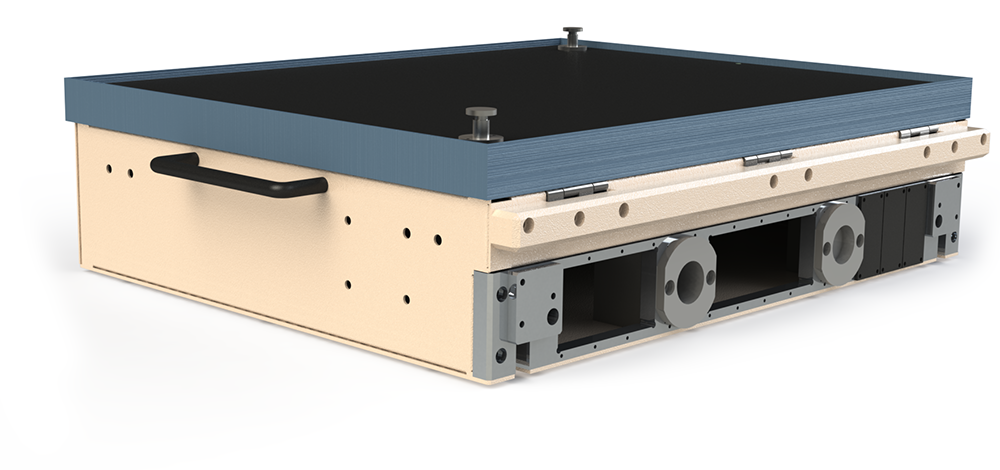

The VT Series 63 vacuum test kits provide both an affordable and versatile solution for printed circuit board testing requiring vacuum actuation and a Genrad 2270/71 interface. The VT Series 63 kits, available in Single and Dual Well models, incorporate a robust design which includes a variety of chassis sizes and depths for additional hardware and components used in Functional Test. Tooling holes on both the top diaphragm plate and probe plate for accurate drill datum. The interface will accommodate up to 11 I/O blocks with a single vacuum port.
Technical Specifications
- Hinged 3/8″ thick G10 Probe plate
- Quick Turn Registration Pins
- Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
- GR2270 style (VG) Interface that accepts Industry Standard Interface Blocks
- Tooling Holes provided for accurate drilling of plates
- Optional Sheet Metal pan depths.
- Optional ESD plates. (-E)
How To Determine Kit Dimensions
First Dimension: Left To Right
Second Dimension: Front To Back
Example: A6306-E 20″ x 16″
20 ” Left to Right
16″ Front to Back
How To Determine UUT And Pan Measurements
| Kit Size | Fixture Size | Max UUT Size |
| GR-102S Vacuum Fixture (A6304) | 16 x 12 | 11.00 x 7.00 |
| GR-103S Vacuum Fixture (A6306) | 20 x 16 | 15.00 x 11.00 |
| All dimensions in inches |
