Semco MT Series 11 Dual Well.

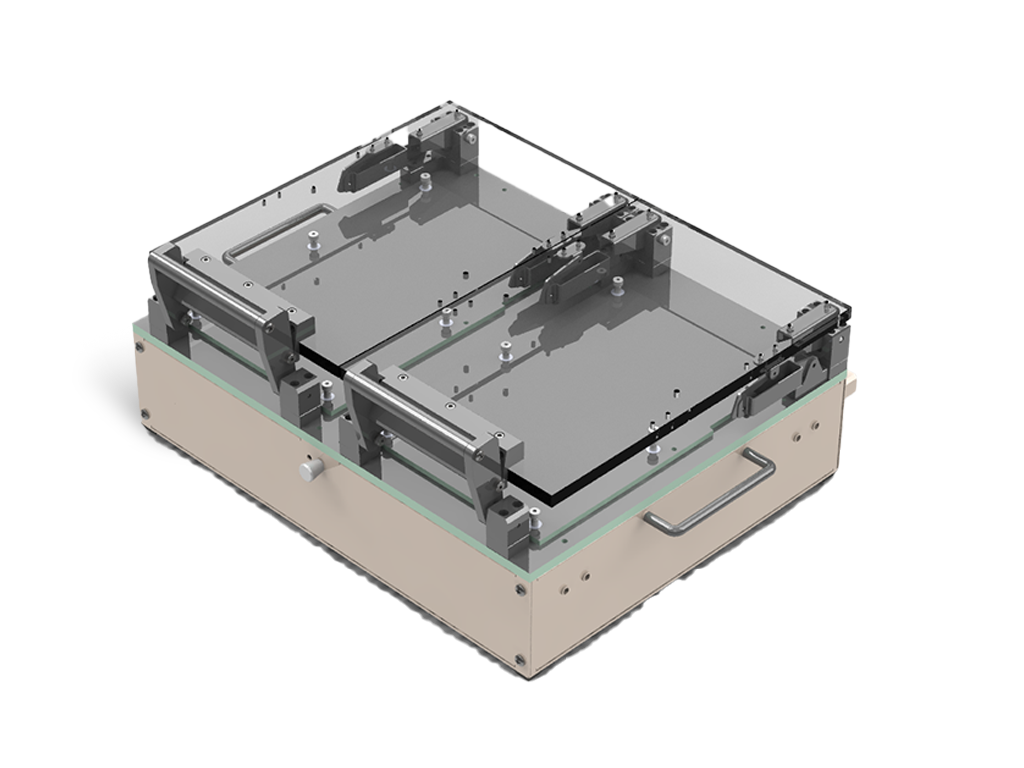

The MT Series 11 dual well mechanical kits are an affordable solution to printed circuit board testing with the advantage of testing two devices. These can be similar devices, or devices that are used together in a functional test. The Series 11 Kits have the same available features and options as the Series 10 Kits.
Technical Specifications
- Hinged 3/8″ thick G10 Probe plate
- 1 /2″ Clear Polycarbonate Covers
- Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
- Tooling Holes provided for accurate drilling of plates
- Optional Sheet Metal pan depths.
- Optional ESD plates. (-E)
- Optional Stripper plates (-T)
How To Determine Kit Dimensions
First Dimension: Left To Right
Second Dimension: Front To Back
Example: A1106 MT103S D/W 20″ x 16″
20″ Left to Right, 16″ Front to Back
How To Determine UUT And Pan Measurements
| Kit Size | Max UUT Size Per Well | Max UUT Size with Stripper Plate Per Well |
| MT102S -DW (A1104) 16 x 12 | 5.00 x 7.50 | 5.00 x 7.00 |
| MT103S-DW (A1106) 20 x 16 | 7.00 x 10.00 | 6.50 x 10.00 |
| MT104S-DW (A1108) 24 x 20 | 9.00 x 14.00 | 8.50 x 14.00 |
| All dimensions in inches | ||
